Applications :

• The single core high performance power cables are used in safety signalling equipment rooms.

Standards :

• SE902
• UNE 21123

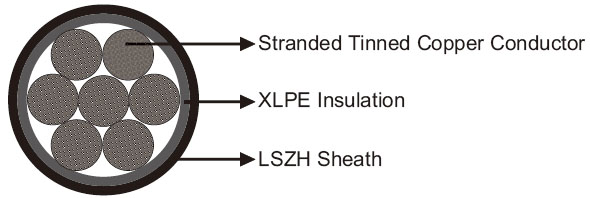

Construction :

• Conductors : Stranded tinned copper conductors to IEC 60228 class 2 or 5.
• Insulation : XLPE.
• Sheath : LSZH.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm2	4.0
  Maximum DC Conductor Resistance	Ω/km	4.7
  Voltage Rating	KV	0.6/0.1

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5×OD.
• Temperature Range : -25°C to +85°C(during operation) ; -10°C to +70°C (during installation).

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	No. & Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RF902-RZ1-U-0.6/1KV-1G4	1×4.0	7/0.85	0.8	21.6	624

  U is changed to K if the stranding class is changed from class 2 to class 5.



		Low Toxicity



Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
